CADGrasp: Learning Contact and Collision Aware General Dexterous Grasping in Cluttered Scenes

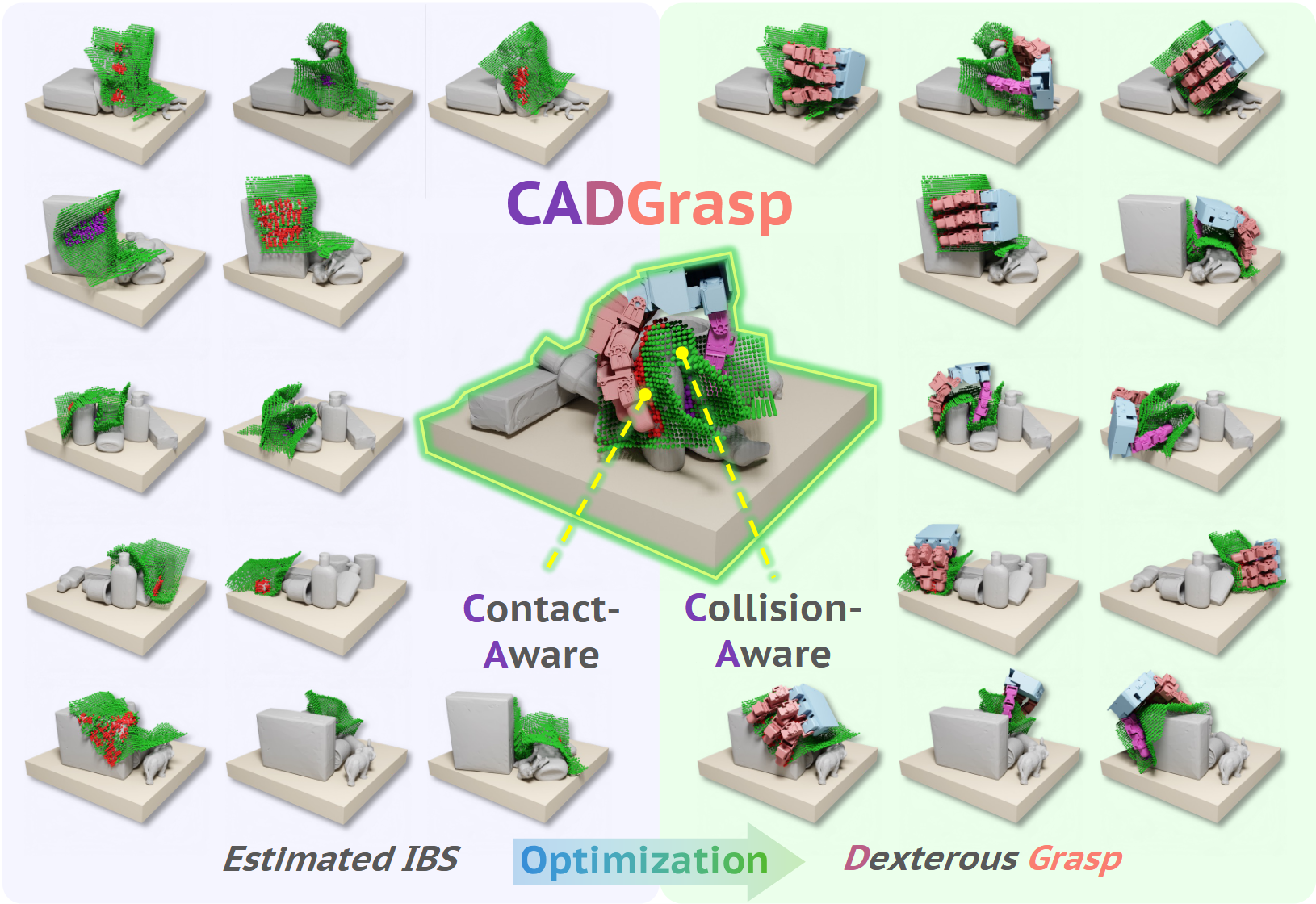

CADGrasp learns a contact- and collision-aware intermediate representation as a constraint, and further obtains the dexterous grasp pose with an optimization method to achieve single-view dexterous hand grasping in cluttered scenes.

Abstract

Dexterous grasping in cluttered environments presents substantial challenges due to the high degrees of freedom of dexterous hands, occlusion, and potential collisions arising from diverse object geometries and complex layouts. To address these challenges, we propose CADGrasp, a two-stage algorithm for general dexterous grasping using single-view point cloud inputs. In the first stage, we predict a scene-decoupled, contact- and collision-aware representation—sparse IBS—as the optimization target. Sparse IBS compactly encodes the geometric and contact relationships between the dexterous hand and the scene, enabling stable and collision-free dexterous grasp pose optimization. To enhance the prediction of this high-dimensional representation, we introduce an occupancy-diffusion model with voxel-level conditional guidance and force closure score filtering. In the second stage, we develop several energy functions and ranking strategies for optimization based on sparse IBS to generate high-quality dexterous grasp poses. Extensive experiments in both simulated and real-world settings validate the effectiveness of our approach, demonstrating its capability to mitigate collisions while maintaining a high grasp success rate across diverse objects and complex scenes.

Video

CADGrasp

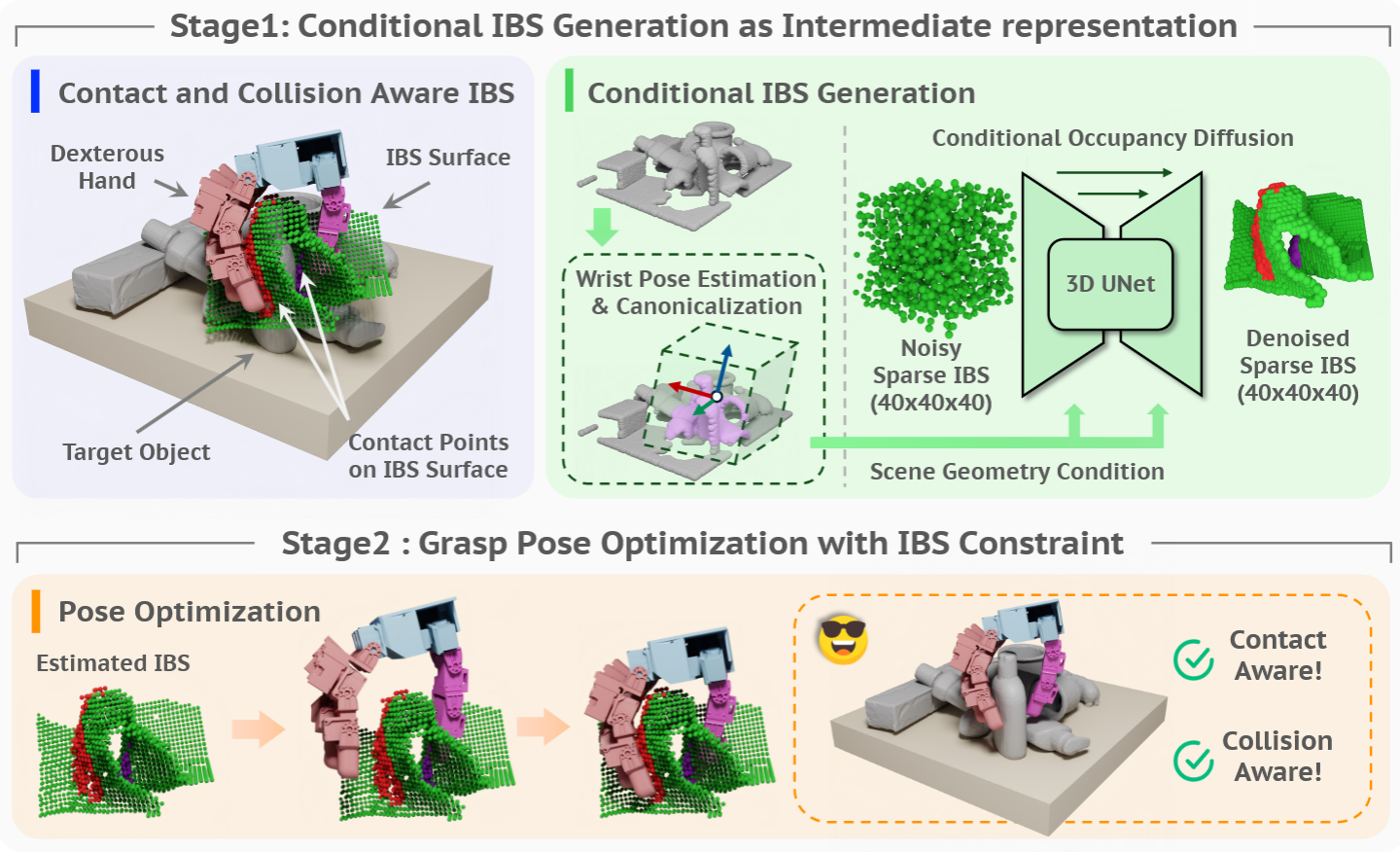

Overview of CADGrasp, a two-stage framework for dexterous grasping in cluttered scenes. (I) Conditional IBS Generation: A diffusion model is trained to model the conditional probability distribution \( p(\mathcal{I}|\mathcal{P}, \mathbf{T}) \). (II) Grasp Pose Optimization: We optimize the grasp poses \( \mathcal{G} \) with predicted sparse IBS \( \hat{I} \) as constraints.


Predicted IBS viusalization

viusalize predicted IBS for scene

Predicted IBS

optimization progress
